UPVC deductions

Always measure the brick to brick opening of the aperture

Always take measurements as viewed from the outside

When you have your width and height measurement you will need to make a further reduction to compensate for the expansion and contraction of the window frame. Please refer to the table below to indicate how much the deduction should be

UPVC Window Measuring

Red tick

Please note, if you cannot get access to your windows safely then we recommend that you seek the help of a surveyor, builder or joiner who can carry out the measurement process for you.


​When measuring your window is it important to remember the following:

If you have decided that you would rather buy your windows online and organise installation instead of going through an installation company then you will at some point need to measure your windows as all replacements are bespoke to your requirements and are manufactured according to the required size of the aperture.


​First things first, you will need a pen or pencil, a measuring tape, potentially a step-ladder and a form to note down your measurements. We have created a sample quotation form should you require it.

Home > Guides & Help > Blog > UPVC Window Measuring

Typically, you will be deducting a further 10mm for white frames and a further 15mm for non-white frames. Please note that the extra deduction should be taken from the total width and height and not per side.

Once you have made your width and height deduction you will then have your final size to order your replacement window.

There are other areas to consider when measuring for replacements windows to ensure that they comply with current building regulations. These areas consist of, but are not restricted to:

Always make sure that the final sizes include the cill and any add ons/frame extenders required

If you are ever unsure about current legislation regarding replacement windows you can find further advice on our FAQ page. You can also contact us for advice or you may wish to consult a surveyor or builder. For our video guide on measuring your windows, please head to our guides page.


Use our window designer tool and transform the look of your home today!

Trickle ventilation (part F building regulations)

Red tick
Red tick

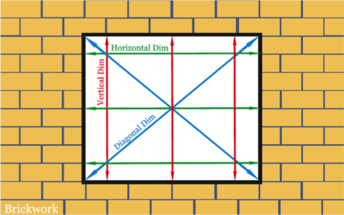

​When taking a width measurement of your window it is important to take more than one measurement. We would recommend taking 3 separate measurements at the top, middle and bottom of the aperture. These measurements may not be exactly the same but make a note of the smallest measurement of the 3.

The same process should be done when measuring the height of the aperture by taking 3 sizes from the right, center and left hand side of the aperture from the lintel or top brickwork to the bottom of the window cill (if applicable). Again make a note of the smallest of the 3 measurements.

It is also generally best practice to check the squareness of the aperture by taking two diagonal measurements from corner to opposite corner. These measurements do not need to be recorded.

Red tick

Toughened glass locations (part K building regulations)

Join the conversation...

Always record measurements in metric (mm)

Red tick
Measuring guide
Red tick

Fire escape hinges (part B building regulations)
